APC Smart-UPS 6000VA 230v Rackmount
Features:
• Connect the device to a network using a 10 or 100 BaseT connection
• Battery failure notification.
• Easy recovery from overloads; no need to replace a fuse.
• Provides temporary battery power when the utility power is out.
Read the full description£4,579.57 (£5,495.48 inc VAT)
SKU: SRT6KRMXLI
FREE Next Day UK delivery on orders over £300
Government Discount - If you are a Council, School, College or University please contact us with your enquiry. You may be liable for an Extra Discount.
Quantity Discounts available - request for a quotation
Got a Question ? - Use our LIVE Chat window below and talk to one of our friendly staff who'll be happy to help. Or send us an email at sales@imagestore.co.uk.
Associated products
Latest products
Associated products
Latest products
- Associated products
- Latest products
Overview

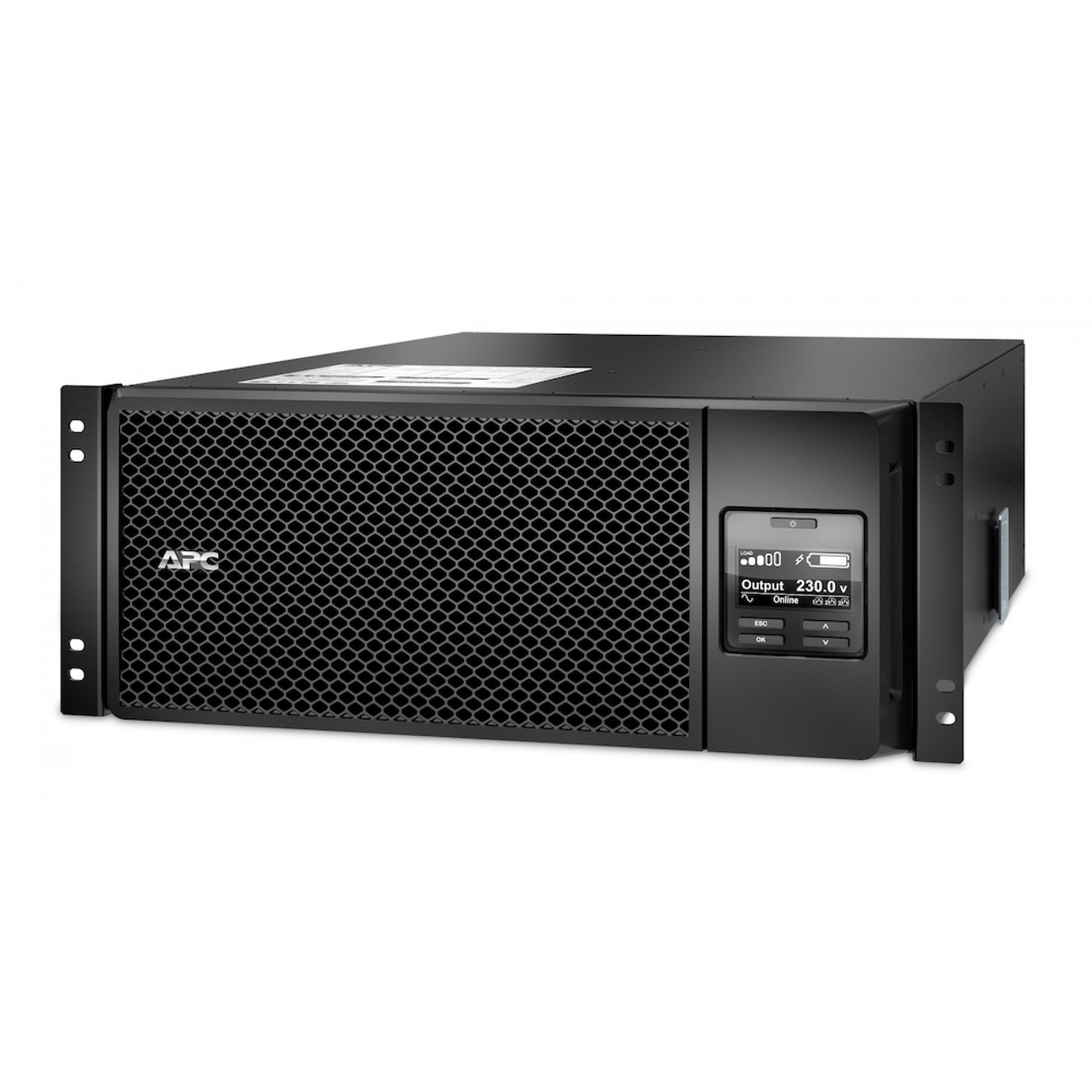

APC Smart-UPS SRT 6000VA RM 230V SRT6KRMXLI
LCD graphics display has text and mimic diagrams that display modes of operation, system parameters and alarms. Connect the device to a network using a 10 or 100 BASE-T connection. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance. Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault. Scalable runtime allows additional run time to be quickly added as needed. Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.
Specification
| APC Smart-UPS SRT 6000VA RM - UPS - 6000 Watt - 6000 VA | |
|---|---|
| Device Type | UPS - rack-mountable |
| Rack Size | 4U |
| Weight | 60 kg |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ± 3% |
| Power Capacity | 6000 Watt / 6000 VA |
| Input Connectors | 1 x hardwire 3-wire (1PH + N + G) |
| Output connectors | 6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire 3-wire (HN + G) ¦ 2 x IEC connector |
| Battery | Lead Acid |
| Run Time (Up To) | 1.5 min at full load |
| Networking | Ethernet 10/100, USB |
| Included Accessories | Rack mounting rails |
| Colour | Black |
| Dimensions (WxDxH) | 43.2 cm x 71.9 cm x 17.4 cm |
| Manufacturer Warranty | 3-year warranty |
| General | |
|---|---|
| Colour | Black |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 4U |
| Battery | |
|---|---|
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 3 hours |
| Run Time (Up To) | 1.5 min at full load ¦ 8.1 min at half load |
| Technology | Lead Acid |
| Dimensions & Weight | |
|---|---|
| Depth | 71.9 cm |
| Height | 17.4 cm |
| Weight | 60 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
|---|---|
| Shipping Depth | 96 cm |
| Shipping Height | 37 cm |
| Shipping Weight | 67 kg |
| Shipping Width | 61 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
|---|---|
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces | 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45 |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Miscellaneous | |
|---|---|
| Compliant Standards | RoHS, REACH, IP20 |
| Features | Audible alarm, LCD display |
| Included Accessories | Rack mounting rails |
| Rack Mounting Kit | Included |
| Networking | |
|---|---|
| Remote Management Interface | Ethernet 10/100, USB |
| Power Device | |
|---|---|
| Efficiency | 98% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | 1 x hardwire 3-wire (1PH + N + G) |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ± 3% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 6000 Watt / 6000 VA |
| Power Output Connectors Details | 6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire 3-wire (HN + G) ¦ 2 x IEC connector |
| Surge Energy Rating | 480 Joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Software / System Requirements | |
|---|---|
| Software Included | Drivers & Utilities |
Warranty
3 years, excluding the batteries, which are warranted for 2 years.
